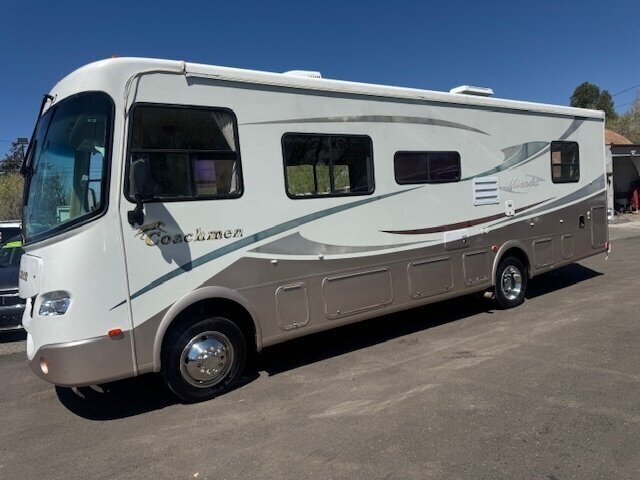

2006 COACHMEN MIRADA 300QB

2006 Coachmen Mirada 300QB.

Body Features
Chassis Construction Steel frame
Roof Material TPO
Side Wall Material Fiberglass with aluminum framing
Slideouts 0
Maximum Sleeping Capacity 4
Bath Layout Sink, toilet, shower

Chassis
Chassis Ford F53
Layout Front Engine, RWD
Brakes 4-wheel disc with ABS
Tire Size 245/70R19.5

Dimensions and Weights
Wheelbase (in) 190
Overall Length (ft/in) 31' 8"
Overall Height (ft/in) 11' 4"
Overall Width (in) 95
Interior Height (ft/in) 6' 8"
Interior Width (in) 92
Gross Vehicle Wt Rating (GVWR) 15700
Unloaded Curb Weight (lb) 13115
Front Gross Axle Wt Rating (lb) 6000
Rear Gross Axle Wt Rating (lb) 11000

HVAC
Furnace BTU 30000
A/C BTU 13500

Powertrain
Fuel Type Gasoline
Engine Manufacturer/Model Ford Triton
Type of Engine 6.8L V10
Horsepower @ RPM 362 @ 4750
Torque @ RPM 457 @ 3250
Alternator Amps 110
Transmission 5-sp. TorqShift Auto
Rear Axle Ratio 5.38

Tank Capacities
Fuel Capacity (gal) 75
LP Gas (gal) 20
Water Heater (gal) 6
Fresh Water (gal) 75
Gray Water (gal) 35
Black Water (gal) 35

Towing
Tow Capacity Standard 10300
Tow Hitch Rating 5000
Gross Combined Wt Rating (lb)
